57mm Nema 23 Brake High Torque Nema 23 Cnc Stepper Motor With Integrated Brake Frame Size

Product Categories
Changzhou Jinsanshi Mechatronics Co., Ltd
Contact Now

57mm Nema 23 Brake High Torque Nema 23 Cnc Stepper Motor With Integrated Brake Frame Size

Brand Name : JSS-MOTOR

Model Number : 57HSB76-3004

Certification : CE, ISO9001

Place of Origin : CHINA

MOQ : 1PCS

Price : negotable

Payment Terms : T/T, Western Union，credit card, paypal

Supply Ability : 30000pcs/month

Delivery Time : 1-15days

Packaging Details : cartons

Name : stepper motor with brake

phase : 2-phase

step degree : 1.8°

Motor Current : 3A

motor holding torque : 2N.m

Brake voltage : 24VDC

motor length : 76mm

size : nema 23

shaft diameter : 8mm

lead wire : 4

Contact Now

nema 23 57mm frame size stepper motor with brake high torque stepper motor for cnc

Stepper motor with brake:

Brake parameter:

Brake Model

Input Voltage

Power

Diameter

Brake Length

Brake Torque

Suitable motor

Weight
35 24V 5.8W 40mm 26mm 0.35N.m 42HSB 0.15KG
50 24V 4.8W 50mm 31.5mm 1.5N.m 57HSB 0.33KG
56 24V 9.3W 61mm 37.5mm 3.9N.m 86HSB 0.506KG

Stepper motor data sheet:

Model No Step Angle(°) Rated Voltage(V) Rated Current (A) Phase Resistance(Ω) Phase Inductance (mH) Holding Torque (Kg.cm) Detent Torque(g.cm Max) Rotor Inertia (g.cm²) Motor Length (mm) Leads No. Motor Weight(Kg)
57HS41-2004 1.8 2 2 1 1.2 3.2 210 120 41 4 0.45
57HS41-1004 1.8 5.4 1 5.4 9.5 5.5 210 120 41 4 0.45
57HS41-2004 1.8 2 2 1 2.2 5 210 120 41 4 0.45
57HS51-1504 1.8 2.4 1.5 1.6 3.8 8.2 360 275 51 4 0.65
57HS51-2004 1.8 2.4 2 1.2 3 9 360 275 51 4 0.65
57HS51-2006 1.8 2 2 1 1.6 7 360 275 51 6 0.65
57HS56-1504 1.8 5.7 1.5 3.8 12 13.5 400 300 56 4 0.7
57HS56-3004 1.8 2.85 3 0.95 2.8 12 400 300 56 4 0.7
57HS56-2006 1.8 3.6 2 1.8 2.8 9 400 300 56 6 0.7
57HS64-3004 1.8 3.9 3 1.3 2.2 15 500 380 64 4 0.8
57HS76-2004 1.8 8.6 2 4.3 16.2 24 680 480 76 4 1
57HS76-3004 1.8 2.7 3 0.9 3.5 20 680 480 76 4 1
57HS76-4004 1.8 2.4 4 0.6 2.2 20 680 480 76 4 1
57HS82-3004 1.8 4.2 3 1.4 5 22 700 510 82 4 1.2
57HS82-4004 1.8 3 4 0.75 3.5 20 700 510 82 4 1.2
57HS100-3004 1.8 3 3 1 4.5 25 1000 680 100 4 1.4
57HS112-3004 1.8 3.9 3 1.3 6.5 30 1200 800 112 4 1.7
57HS112-3504 1.8 2.45 3.5 0.7 3 28 1200 800 112 4 1.7

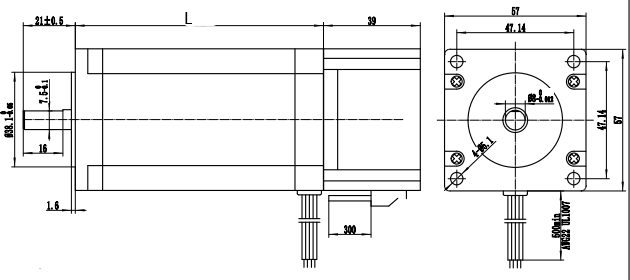

Dimensions:

57mm Nema 23 Brake High Torque Nema 23 Cnc Stepper Motor With Integrated Brake Frame Size

Applications:

Stepper motor are widely applied in engraving machine, textile machine, 3D printer, medical instruments, stage light equipment, robot, CNC, music fountain, and other industrial automatic equipment.

57mm Nema 23 Brake High Torque Nema 23 Cnc Stepper Motor With Integrated Brake Frame Size

Details Images
57mm Nema 23 Brake High Torque Nema 23 Cnc Stepper Motor With Integrated Brake Frame Size
57mm Nema 23 Brake High Torque Nema 23 Cnc Stepper Motor With Integrated Brake Frame Size
57mm Nema 23 Brake High Torque Nema 23 Cnc Stepper Motor With Integrated Brake Frame Size
Company Profile
57mm Nema 23 Brake High Torque Nema 23 Cnc Stepper Motor With Integrated Brake Frame Size
FAQ
1. Q: Can I get some samples?
A:We are honored to offer you samples for quality check.
2. Q: Do you have the products in stock?
A: Our products are manufactured according to your order except the normal products.
3. Q: What's the delivery time?
A:It usually takes about 7 working days,but the exact delivery time might be different for different order or at different time.
4. Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production.
Every product will be fully assembled and carefully tested before packed.
5. Q: What's your warranty terms?
A: We offer different warranty terms for different products. Please contact with us for details.
